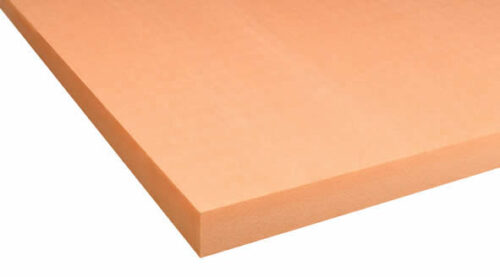

XPS WF is a rigid thermal insulation board made of extruded polystyrene (XPS) foam produced according to climate-friendly CO2 technology.
This product is mainly used as thermal insulation of interior walls. The rough surface of the panel allows interior plastering.
PRODUCT APPLICATION
XPS WF is mainly used as thermal insulation of interior walls. The rough surface of the panel allows interior plastering.
The board comes with a straight edge profile.
The board comes with a straight edge profile.
COMPOSITION
Color: Orange
| Packing & Storage Thickness (mm) | Boards/pack | m²/pack | Boards/pallet(1) | m²/pallet
(1) |
Thermal resistance (RD) (m².K/W) |
| 40 | 10 | 7,50 | 120 | 90,0 | 1,20 |
| 50 | 8 | 6,00 | 96 | 72,0 | 1,50 |
| 60 | 7 | 5,25 | 84 | 63,0 | 1,80 |
| 80 | 5 | 3,75 | 60 | 45,0 | 2,25 |
| 100 | 4 | 3,00 | 48 | 36,0 | 2,85 |
| 120 | 3 | 2,25 | 42 | 31,5 | 3,40 |
| Characteristics Thermal conductivity (W/(m.K)) (EN 12667) 30 – 60 mm
70 – 120 mm |
0,033
0,035 |
| Length (mm) (EN 822) | 1250 ± 8 |
| Width (mm) (EN 822) | 600 ± 8 |
| Density (kg/m3) | 30-35 |
| Edge profile | straight edge |
| Surface | rough |
| Compressive strength at 10 % deformation (kPa) (EN 826) | CS(10\Y)300 |
| Dimensional stability (EN 1604) | DS(70,90) |
| Long term water absorption by immersion (%) (EN 12087) | WL(T)0,7 |
| Reaction to fire (EN 13501-1) | E |
| Water vapour permeability (μ) (EN 12086) | 150 |
| Tensile strength perpendicular to faces (kPa) (EN 1607) | TR200 |
| Compressive creep (EN 1606) 60 – 120 mm | CC(2/1,5/50)130 |
Installation
Use a suitable adhesive for adhesion to underground walls.
Always consult the local regulations and contact the manufacturer for technical questions.
After installation the insulation boards must be protected against weather conditions and sunlight.
| Thickness | 40mm, 50mm, 60mm, 80mm, 100mm, 120mm |
|---|---|
| Packaging | Pallets, Packs |
