Cross Laminated Timber (CLT) Render

The system complies with the most stringent of standards – from baseline building regulations through to Passivhaus.

The system is available in an extensive number of render options including colour, texture and weathering resistance. All components for the system are available for purchase directly from Unity Lime and our network of partners.

SYSTEM PERFORMANCE

U-values
0.26 – 0.10 W/m2.K

Y-values
Available upon request from insulation manufacturer.

PRODUCT DOWNLOADS

Cross Laminated Timber Render System Sheet

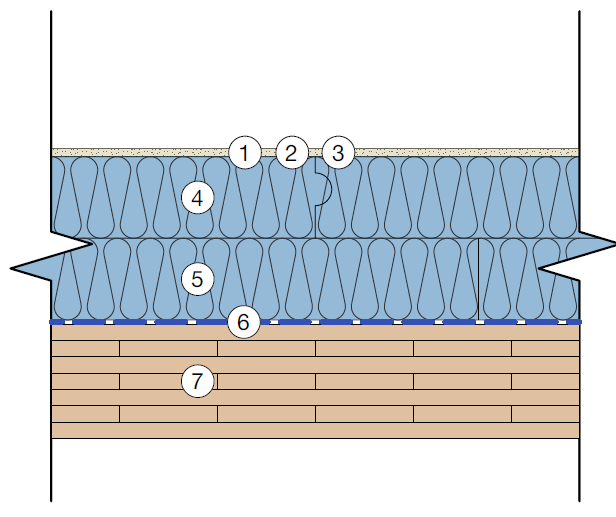

CROSS SECTION OF SYSTEM

  1. Render finish – SILIKAT TOP
  2. Primer – PREMIUM PRIMER
  3. Base coat – MC55W 6-8mm
  4. Sheathing board – ISOLAIR MULTI
  5. (Optional) Build-up board – PAVATHERM
  6. Airtightness layer – DSB2 Membrane
  7. Cross Laminated Timber Panel
